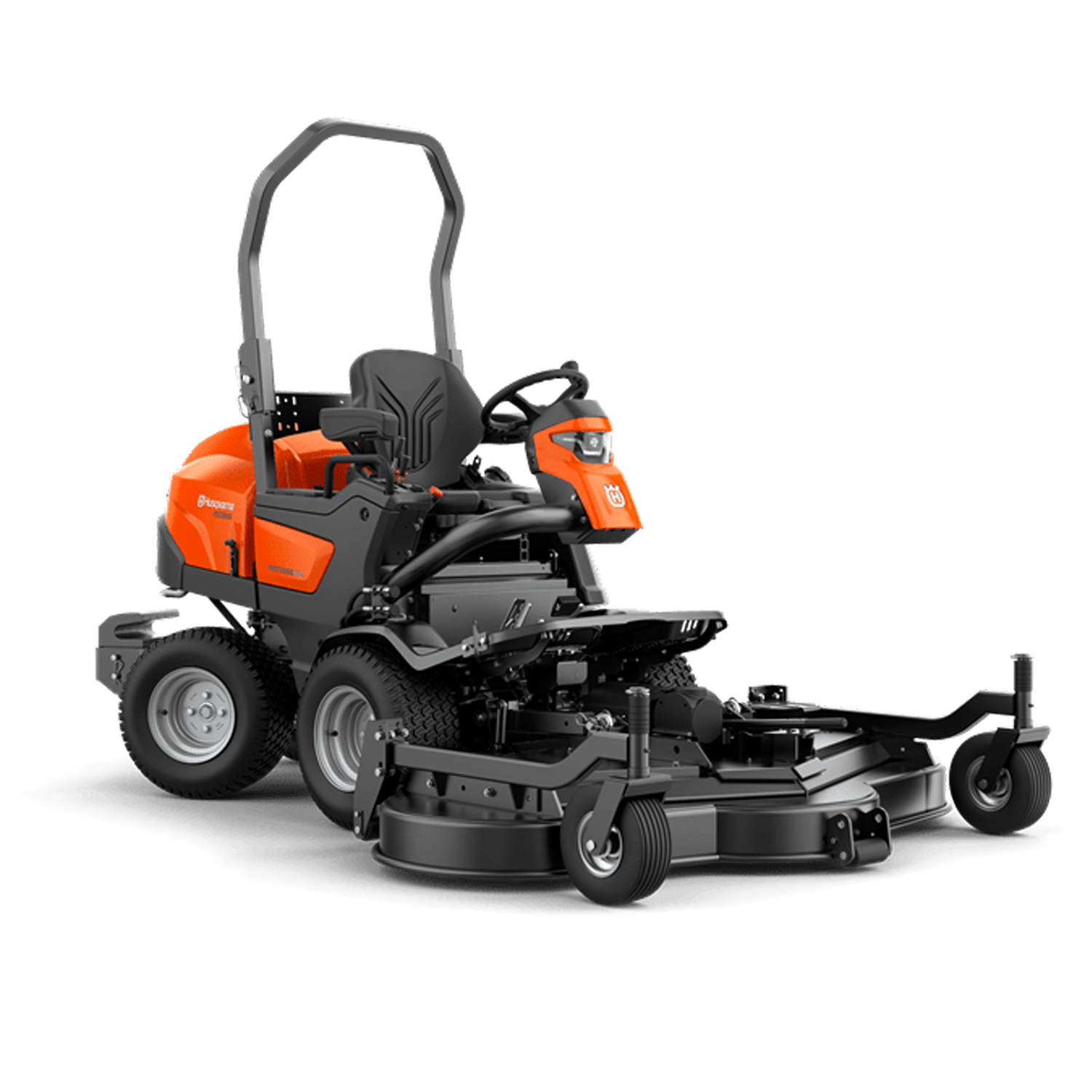

Husqvarna P 535HX
The Husqvarna P 535HX Hybrid Front Mower is ideal for keeping larger lawns and outdoor greenspaces looking pristine, whilst working efficiently to save operators valuable time. The ergonomic driver interface with modern graphic displays and easy-access controls provides a comfortable ride during long working hours and a built-in connectivity module allows you to connect with Husqvarna Fleet Services™. The P 535HX can be equipped with high-capacity cutting decks up to 180 cm, providing an excellent result and efficient mowing in any terrain. Thanks to the 20″ wheels, all-wheel drive and articulated steering it is easy to manoeuvre even in rough terrain and complex areas. Two electric motors power the wheel drive axles, while the PTO, hydraulics and electric generator are powered by a diesel engine. Commercial-grade components and ease of service make for uncompromised durability and maximum uptime. The incorporation of dual-energy sources combined with high efficiency in the Hybrid system enables extreme power for the P 535HX yet maintained in a compact and agile format. The power train reduces the vehicle’s overall fuel consumption and its CO2 footprint and operational cost.
Call: (090) 663 0700
Make an enquiry
Description
HUSQVARNA P 535HX
The Husqvarna P 535HX Hybrid Front Mower is ideal for keeping larger lawns and outdoor greenspaces looking pristine, whilst working efficiently to save operators valuable time. The ergonomic driver interface with modern graphic displays and easy-access controls provides a comfortable ride during long working hours and a built-in connectivity module allows you to connect with Husqvarna Fleet Services™. The P 535HX can be equipped with high-capacity cutting decks up to 180 cm, providing an excellent result and efficient mowing in any terrain. Thanks to the 20″ wheels, all-wheel drive and articulated steering it is easy to manoeuvre even in rough terrain and complex areas. Two electric motors power the wheel drive axles, while the PTO, hydraulics and electric generator are powered by a diesel engine. Commercial-grade components and ease of service make for uncompromised durability and maximum uptime. The incorporation of dual-energy sources combined with high efficiency in the Hybrid system enables extreme power for the P 535HX yet maintained in a compact and agile format. The power train reduces the vehicle’s overall fuel consumption and its CO2 footprint and operational cost.
Features
Hybrid Drive System
Equipped with a hybrid drive system that can be operated in two different drive modes; electric mode (used during transportation) and hybrid mode (diesel engine running and battery buffer active) where the modes continuously interact depending on cutting conditions.
Unique Articulated Steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
All Wheel Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Electron Traction Control
The All-Wheel Drive (AWD) propulsion system is electronically controlled via integrated sensors which ensures optimized traction. The drive wheels individually and automatically set the correct speed in all situations, which eliminates the need of intermittent speed calibration of the drive system.
Husqvarna Front Mowers
Husqvarna Front mowers are equipped with a front-mounted and low profile cutting deck. It will provide you with an excellent overview of the working area, enabling precise, close-up trimming. It also gives you unbeatable accessibility in under fences, bushes, park benches etc.
Hilly terrain will not stop you either. The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.
A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year around. And thanks to the high-performance Combi deck that is stamped from a single piece of steel plate it will deliver efficient mulching and rear discharge with exceptional results as well as a problem-free operation.
Your Husqvarna Front Mower is designed to be ergonomic and easy to use. For instance – the service position on the cutting deck makes it easier to clean and service. Other practical details are the tilting hood and easy-access servicing points. It makes maintenance simple to handle.
For more details on this product visit Husqvarna here.
Features
- Hydraulic power steering
- Dynamic touch color display
- Shaft PTO
- Kubota diesel engine
- Commercial graded transmission
- Reduced fuel consumption
- Electric fuel gauge
- Grammer® full suspension seat
- Tool carrier in electric mode
- Easy-access controls
- Service position
- Quick coupling
- Durable ladder frame
- Compact design
- Heavy-duty deck design
- HVO100 ready
- Dual LED lights
- Versatile usage
- Hydraulic attachment control
- AUX hydraulics kit
- Ergonomic operation
- Mowing accessibility
- Trimming ability
- Off-set cutting deck
- Hillside driving performance
- Large sized wheels
- Cast iron rear wagon
- Easy access
- Greasable mandrels
- Ready for Combi deck
- Ready for Rear discharge deck
Specification
| Engine | Drive System | ||||
| Motor/engine manufacturer
Engine name Motor/engine model Cylinder displacement Cylinders Net power at preset rpm Energy Power/fuel type Fuel tank volume Engine cooling Generator Engine lubrication type Oil type Oil filter Exhaust emissions (CO2 EU V)
|
Kubota
D1105 4TNV88-BDHQ EPA Tier4 Interim TPEM 1123 cm³ 3 17.8 kW Hybrid Li-ion Battery/Diesel 23 l Liquid 100 A Pressure with Oilfilter SAE10W40 Yes 1047 g/kWh
|
Transmission type
Drive method Speed forward max Speed reverse max
|
Electric AWD
Dual pedal-operation 19.5 km/h 11 km/h
|
||
| Cutting Deck | Equipment | ||||
| Cutting width, min-max
Deck thickness Cutting height steps Uncut circle Blade engagement Anti-scalp wheels Cutting Height, min-max
|
132-180 cm
4.5 mm 7 58 cm Electric clutch 1 30-112 mm
|
Power steering
All-Wheel Drive (AWD) Optional cutting decks Pivoting rear axle Seat type Seat manufacturer Seat material Seat suspension Seat back height Hinged armrests ROPS Oil cooler Service position Headlights Quick connection Hour meter type 12V outlet Cup holder
|
Yes
Yes Combi 155, R180 Yes Full suspension, arm rests Grammer Vinyl Yes High Standard Yes Yes Yes Yes Yes Digital with pre-programmed service intervals Yes No
|
||
| Dimensions | Sound and Noise | ||||
| Base machine, length
Base machine, width Base machine, height Base machine, height (ROPS down) Base machine, height (ROPS up) Ground clearance Wheelbase Tyre manufacturer Weight Gross weight towed
|
209 cm
116 cm 134 cm 134 cm 204 cm 134 mm 106 cm Kenda 790 kg 350 kg |
Sound pressure level at operators ear
Sound power level, measured Sound power level, guaranteed (LWA) Sound level
|
88 dB(A)
104 dB(A) 105 dB(A) 105 dB(A)
|
||
| Vibration | |||||
| Vibration level steering wheel
Vibration level seat
|
1.2 m/s²
0.1 m/s²
|
||||
