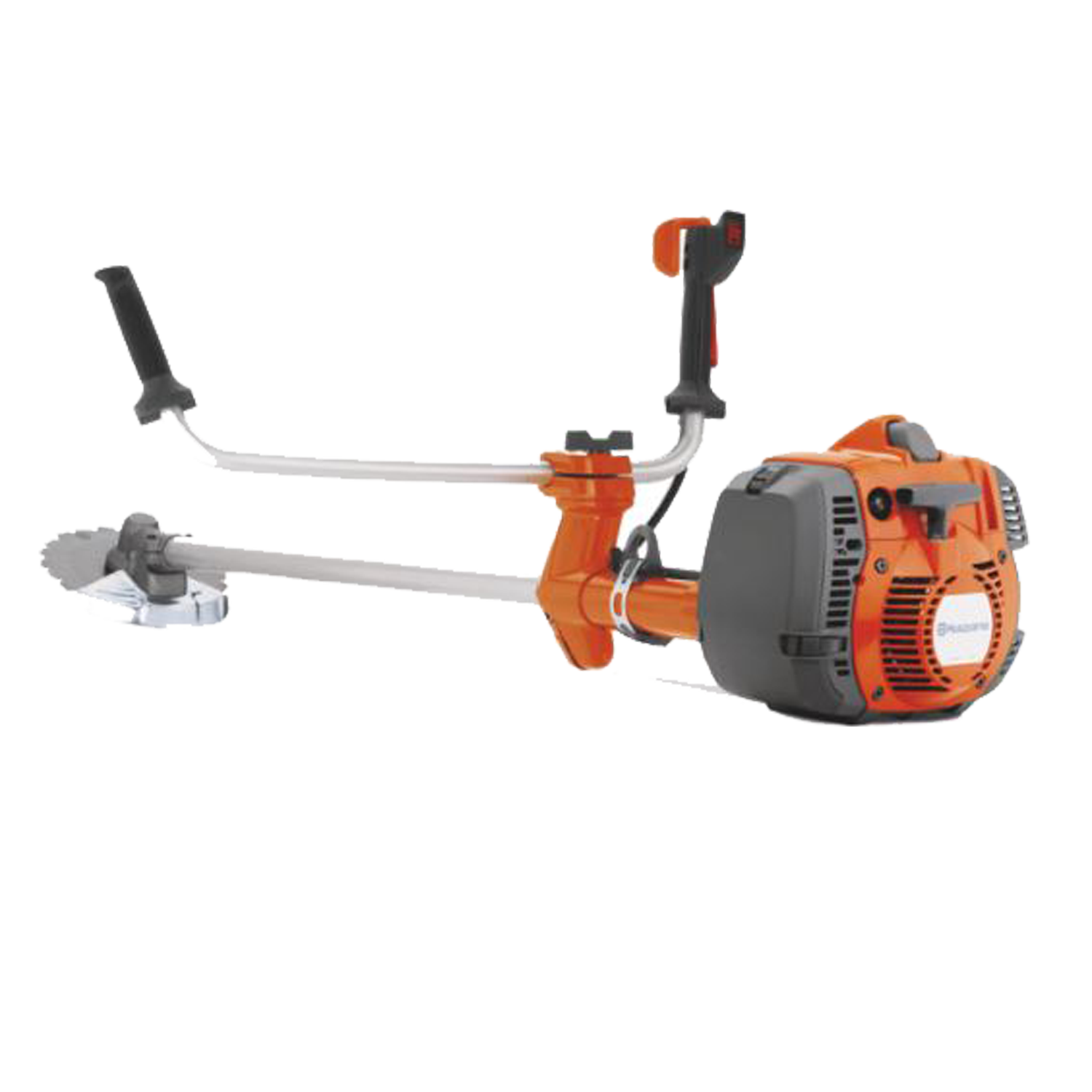

Husqvarna 545FX

Husqvarna 545FX

Exceptionally easily operated forestry clearing saw with high performance and unique ergonomical solutions designed for full time spacing tasks. Optimised transmission with the bevel gear angled 24 degrees simplifies directional felling in dense forests. Easily started X-torq® engine with rapid acceleration, reduced fuel consumption and emissions. Very low vibrations thanks to an effective anti-vibration of the engine, drive shaft and cutting equipment. Easy to start with Smart Start®. Delivered with Balance XT harness. Subject to Availability – Delivery leadtime may apply.

  • Cylinder displacement 2.8 cu.inch
  • Cylinder displacement 45.7 cm³
  • Power output 3 hp
  • Power output 2.2 kW

Call: (090) 663 0700

Make an enquiry

    Description

    Husqvarna 545FX

    Husqvarna 545FX. Exceptionally easily operated forestry clearing saw with high performance and unique ergonomical solutions designed for full time spacing tasks. Optimised transmission with the bevel gear angled 24 degrees simplifies directional felling in dense forests. Easily started X-torq® engine with rapid acceleration, reduced fuel consumption and emissions. Very low vibrations thanks to an effective anti-vibration of the engine, drive shaft and cutting equipment. Easy to start with Smart Start®. Delivered with Balance XT harness. Subject to Availability – Delivery leadtime may apply.

    Features

    Smart Start

    The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.

    Adjustable Handle Bar

    Adjustable and ergonomically designed handlebar for best comfort.

    Simple Starting

    Easy as 1, 2, 3:
    1. Push purge bulb
    2. Push the start button
    3. Pull the cord… and go!

    Thumb Operated Throttle

    Thumb-operated throttle for efficiency and precision control. Reduces strain on the hand muscles.

    Husqvarna Forestry Clearing Saws

    We have made it light yet strong and versatile – ready for tough, long and demanding forest shifts. The shorter shaft and angled bevel gear increases your manoeuvrability in tight stands and makes it easier to fell in a desired direction.

    In fact we have thought about ergonomics and economics too. The engine in a Husqvarna Forestry clearing saw is designed to give you maximum power, with low vibrations and reduced fuel consumption.

    We share your environmental concern and consider it a top priority. That’s why we have equipped all our forest-clearing saws with the unique X-TORQ® engine design. It reduces harmful exhaust emissions by up to 75% and increases fuel efficiency by up to 20%.

    All Husqvarna Forestry clearing saws comes with an auto return stop switch. It means that when the machine is turned off, the stop switch automatically returns to the start position for easier starting. This way your clearing saw will always be ready for you and your tasks.

    Maintenance is simple and thanks to the magnetic locking pin holder, blade switch is made in a safe, quick and easy manner.

    Good working conditions not only gets the job well done, it minimizes injuries and wear on your body. Husqvarna Forestry clearing saws are all provided with ergonomic harnesses with broad back support, shoulder straps and hip belts that distributes the load over a larger area. In all this improves comfort and efficiency. To make it fit even more perfect it also has an adjustable back plate.
    For more details on this product visit Husqvarna here.



    Features

    • Easy blade switch
    • LowVib®
    • Balance XT
    • Auto return stop switch
    • X-Torq® engine
    • Fuel pump
    • Forestry bevel gear
    • Ergonomic handle
    • Comfort handle
    • Fuel pump

    Specifications

    Engine   Transmission
    Power output

    Cylinder displacement

    Maximum rpm output shaft

    Clutch engagement speed (±120)

    Torque, max.

    Torque, max. at rpm

    Idling speed

    Fuel tank volume

    Fuel consumption

    Ignition module air gap

    Electrode gap

    Exhaust emissions (CO2 EU V)



    		 2.2 kW

    45.7 cm³

    10100 rpm

    3900 rpm

    2.6 Nm

    6000 rpm

    2700 rpm

    0.9 l

    450 g/kWh

    0.3 mm

    0.5 mm

    910 g/kWh



    		   Gear ratio

    Drive gear angle



    		 1.29

    24


    Dimensions   Equipment
    Weight (excl. cutting equipment)



    		 8.2 kg



    		   OEM Harness

    OEM Saw blade



    		 Balance XT

    Scarlett 225-24


    Lubricant   Emission
    Lubricant type (bevel gear)



    		 Biodegradable grease



    		   Exhaust emissions (CO average)

    Exhaust emissions (CO₂ average)

    Exhaust emissions (NOx average)

    Exhaust emissions (HC average)



    		 262.85 g/kWh

    910 g/kWh

    1.96 g/kWh

    36.45 g/kWh


    Sound and Noise     Vibration
    Sound power level, guaranteed (LWA)

    Sound pressure level at operators ear



    		 114 dB(A)

    99 dB(A)



    		   Equivalent vibration level (ahv, eq) left handle

    Equivalent vibration level (ahv, eq) right handle



    		 2 m/s²

    3.2 m/s²
